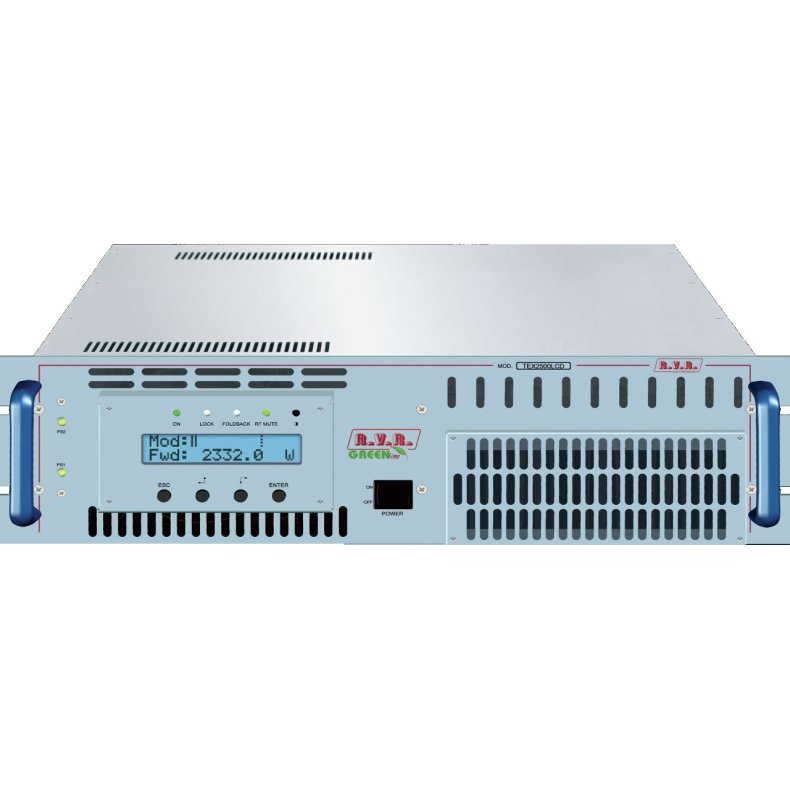

RVR TEX2500GREEN is one of the best and most reliable fm broadcast transmitters on the market. High efficiency and compact design, discribes this fm transmitter in a few words. 2500 watt!

2500 watt output.
Build in stereo encoder.
RDS encoder build in as optional.
Remote control via GSM or IP as optional.

Some Specs:

Frequency range: FCC   CCIR    OIRT   JPN   CHN

Rated output power: 2500 W

AC Power input:

Active power Consumption: 3751W

Connector: Terminal Block

Dimensions: 483mm x  132mm x 670mm

Weight: About 31 kg

For more informations please read the Brochure

PRIMARY APPLICATION:
RVR TEX transmitters offer uncompromised transmission quality at a very attractive price. Ideal for use as drivers for mid-power stations or as transmitters in standalone applications. Adjustable power output from 0 Watt to maximum output power.

AUDIO PERFORMANCE:
key audio features are low distortion and intermodulation values and a high noise/signal ratio.

HARDWARE FEATURES:

RVR TEX transmitters are compact and indeformable thanks to the stainless steel chassis, in 3 rack units only.

RELIABILITY/CONTINUITY:

dual, redundant power supply ensures limited-power operation in the event of a failure for maximum business continuity. APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.

EASE OF MAINTENANCE:

advanced module engineering ensures extreme ease of access and simple maintenance.

INTERFACE CONTROL:

total control thanks to microprocessor easily programmed from menu or via RS232 with all key parameters displayed on LCD.

INPUT/OUTPUT INTERFACE:

built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.

REMOTE CONTROL:

built-in telemetry system with GSM modem, battery and battery charger (option).

REGULATORY COMPLIANCE:

state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

USER-FRIENDLY FEATURES:

pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.
