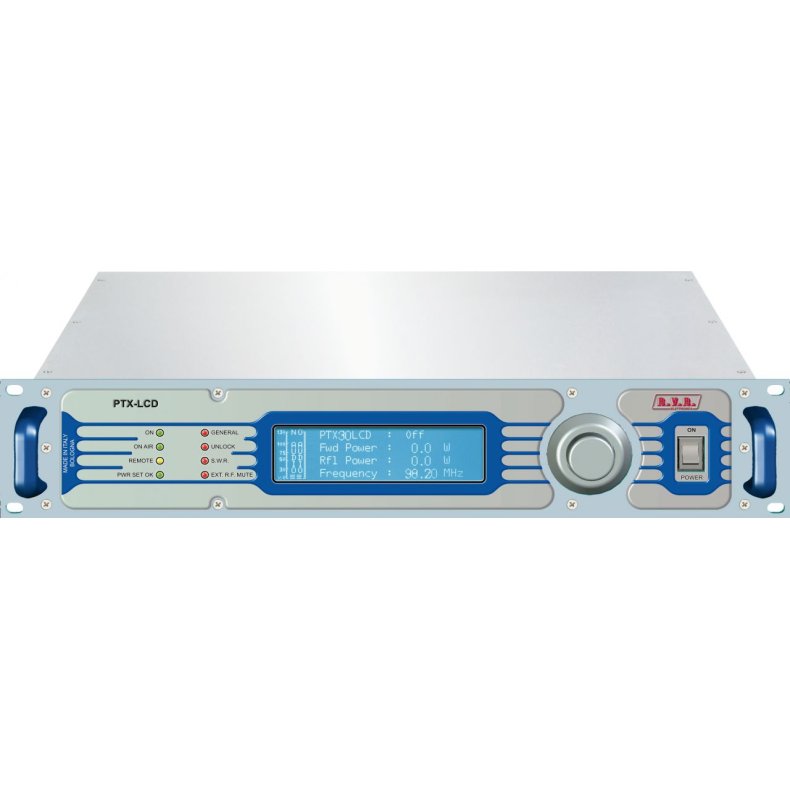

RVR PTX30 LCD/S 30 FM StereoTransmitter 30 Watt

20.083 DKK ~~22.314 DKK~~

Mono/mpx/stereo exciter 30 watt. Top model from RVR. With possibility of remote control as option

Model/Varenr.: RV-PTX30LCD/S

Lagerstatus: Afsendes indenfor 7-14 arbejdsdage

Styk

RVR's PTXLCD/S is the most sold FM transmitter world-wide! Building on RVR's long-standing expertise in the broadcasting equipment industry, PTX exciters are designed to meet the needs of the most demanding professional radiobroadcasting operators.

Clear and transparent sound comparable to CD sound quality made possibile thanks to a noise/signal ratio as high as 90dB, low distortion and stereo separation as high as 60dB!

Features

RVR PTXLCD is the most sold professional FM transmitter worldwide!

AUDIO PERFORMANCE: clear and transparent sound comparable to CD sound quality made possibile thanks to a noise/signal ratio as high as 90dB, low distortion and stereo separation as high as 60dB!
PRIMARY APPLICATION: Optimal for use as an independent exciter. Adjustable power output from 0 to 100%.
HARDWARE FEATURES: compact and indeformable thanks to the stainless steel chassis, in 2 rack units only.
INTERFACE CONTROL: totally microprocessor-controlled, easily programmed from menu through a large LCD and useful optical ENCODER.
INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. S/PDIF, TOSLINK, AES/EBU digital audio inputs now are available as standard.
REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).
RELIABILITY/CONTINUITY: business continuity is guaranteed by an incredible range and variety of controls, such as Fold-Back control for effective VSRW (Voltage Standing Wave Ratio) protection and IAMLC (Intelligent Automatic Modulation Level Control) to keep modulation level steady.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

Rated Output Power: 30 Watt.
Power Consumption: 95 Watt:
Weight: 10 Kg.

Environmental Working Conditions -10 ÷ +50 °C / 95% relative Humidity non condensing
Cooling Forced, with internal fan
Frequency programmability From software, with 10 kHz steps
Frequency stability ±1 ppm
Pre-emphasis mode 0/25/50 (CCIR) ?S, 75 (FCC) ?S
Spurious & harmonic suppression <75 dBc (80 typical)
Asynchronous AM S/N ratio ? ? dB ? dB
Synchronous AM S/N ratio ? ? dB ? dB
MONO OPERATION
S/N FM Ratio > 87 dB RMS (typical 90 dB)
Frequency Response < ± 0.5 dB 30Hz ÷ 15kHz (typical ± 0.2 dB)
Total Harmonic Distortion < 0.05 % 30 Hz ÷ 15 kHz (typical 0.03 %)
Intermodulation distortion < 0.02 % with 1 kHz and 1,3 kHz tones
MPX OPERATION
Composite S/N FM Ratio > 87 dB RMS (typical 90 dB)
Frequency Response ± 0.2 dB 30Hz ÷ 53kHz / ± 0.5 dB 53kHz ÷ 100 kHz
Total Harmonic Distortion < 0.05% 30Hz ÷ 53kHz
Intermodulation distortion < 0.03% with 1 kHz and 1,3 kHz tones
INTERNAL STEREO CODER OPERATION
Stereo S/N FM Ratio > 81 dB RMS (typical 84dB)
Frequency Response ± 0.5 dB 30 Hz ÷ 15 kHz
Total Harmonic Distortion < 0.05% 30 Hz ÷ 15 kHz
Intermodulation distortion ?.03% with 1 kHz and 1,3 kHz tones
Stereo separation > 55 dB 30 Hz ÷ 15 kHz (typical 60 dB)
AUDIO INPUT CONNECTORS
Mono / Left XLR balanced Impedance: 10 k or 600 ohm Level: -13 to +14 dBu
MPX Balanced / Right XLR balanced Impedance: 10 k or 600 ohm Level: -13 to +14 dBu
MPX unbalanced BNC unbalanced Impedance: 10 k or 50 ohm Level: -13 to +14 dBu
SCA/RDS 3 x BNC unbalanced Impedance: 10 k Level: -3 to +15 dBu
OTHER CONNECTORS
RF Output N (50 ohm)
RF Monitor BNC (- 30dBr referred to RF output )
Pilot output BNC Impedance: >4,7k Level: 1Vpp)
MPX Monitor output BNC Impedance: >4,7k Level: 2,2Vpp)
Interlock Input BNC
STANDARD COMPLIANCE
EN 60215:1989
Safety EN60215/A1:1992-07
EN60215/A2:1994-09
EMC
EN 301 489-1 V1.4.1 (2002-08)
EN 301 489-11 V1.2.1 (2002-11)
Radio EN 302 018-2 V1.2.1 (2005-06)

Titel	Type	Størrelse	Download
RVR-PTX30-150LCDS-3.pdf	PDF	1.45MB	Download
