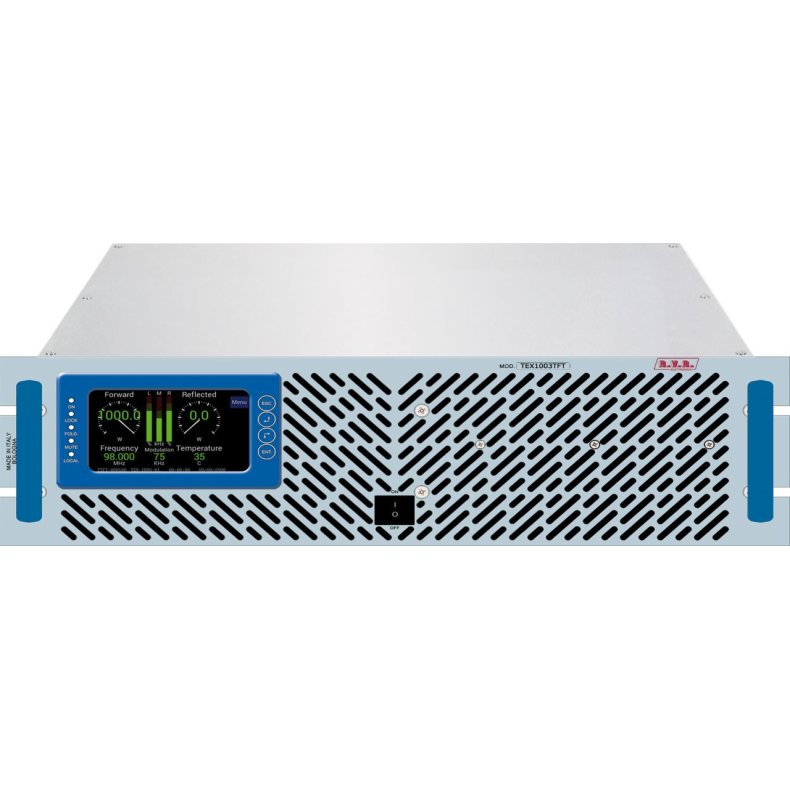

RVR TEX1003TFT FM Transmitter 1000 Watt Stereo - Comming Soon !

RVR TEX1003TFT FM Transmitter 1000 Watt Stereo - Comming Soon !

32.575 DKK 36.195 DKK

compact transmitter for frequency modulation broadcasting

Model/Varenr.: RV-TEX1003TFT
Lagerstatus: Afsendes indenfor 7-14 arbejdsdage
Styk

RVR TEX1003TFT - Comming Soon!



The TEX1003TFT, produced by R.V.R. Elettronica, is a compact transmitter for frequency modulation broadcasting capable of transmitting in the 87.5 to 198 MHz band in steps of 10kHz, with an adjustable RF output up to a maximum of 1000W with a standard load of 50 Ohm.



Power: 1000W





The unit is factory set and calibrated at the time of manufacture. As a result of this manufacturing process, no tuning or adjustment is required.



The factory tolerances are:



- Maximum rated output power: 60 dBm ±1 dB

- Minimum rated output power: 50 dBm  ± 1dB

- Gain: Not applicable (the equipment is supplied without a radiant system, which the customr´s responsibility).



The RVR TEX1003TFT is designed to be contained in a 3HE 19" rack box.



High quality at a very attractive price.Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%



PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.


HARDWARE FEATURES: compact, non-deformable and light thanks to the stainless steel chassis, in 2 rack units only.


USER-FRIENDLY FEATURES: four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.


RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.


AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.


OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.


EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.


INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.


INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.


RDS APPLICATION: built-in RDS encoder with UECP standard functions (option).


REMOTE CONTROL: built-in telemetry system via GSM modem or via WEB/SNMP (option).


REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.







Specifications:


Rated outputpower:  1000W
Frequency range: 87,5 - 108 MHz
Weight: 15 Kg



for more specifications please read the document



Whats included?

  • 1 TEX1003TFT

  • 1 Compliance Documentation

  • 1 Power connector

Titel Type Størrelse Download
RVR-TEX1003TFT-EN-MA.pdf PDF 6.17MB Download
