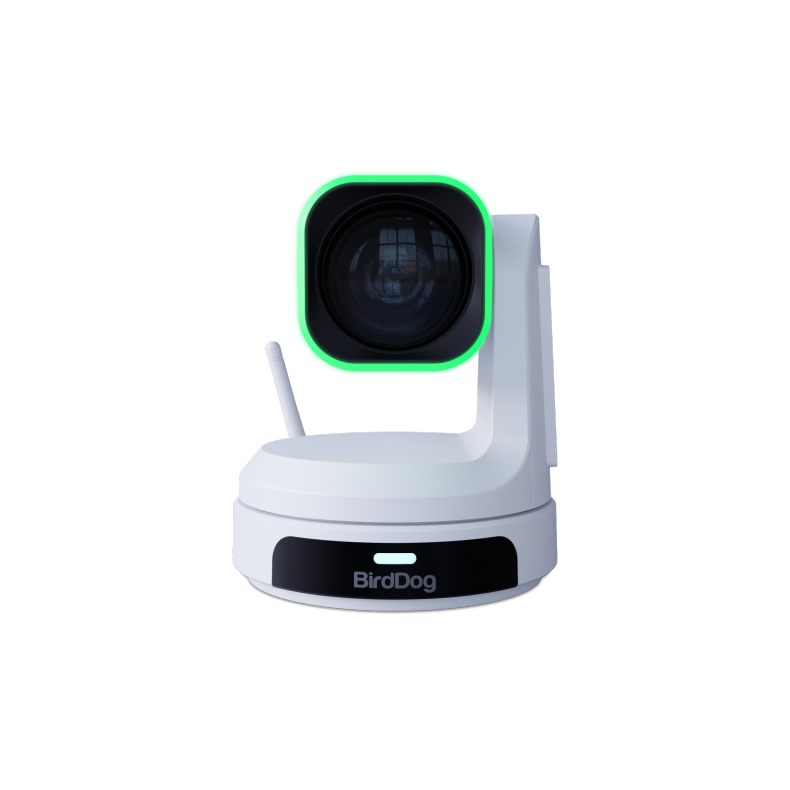

BirdDog X1 Ultra White

he BirdDog X1 Ultra builds on the X1 platform with enhanced performance for more demanding production environments.

The X1 Ultra extends the functionality of the X1 with increased capability and optimized system performance. It supports NDI®|HX3, AI tracking, and multiple streaming protocols while being optimized for more complex workflows.

The integrated NDI decoder enables return feeds, and control is handled via browser, apps, and external controllers. Visible tally indicators and e‑ink displays support multi‑camera workflows.

Features & Functions

• NDI®|HX3
• AI auto tracking
• Integrated NDI decoder
• SRT and RTMP support
• HDMI output
• USB‑C webcam mode
• Wi‑Fi and Ethernet
• E‑ink displays
• RGB halo tally
• API and software integration

Technical Specifications

Imaging

• Sensor: Sony 1/2.8" CMOS (Ultra HD)
• Effective pixels: approx. 8.29 MP
• Lens: f = 4.1 mm – 49.2 mm
• Optical zoom: 12x
• Aperture: F1.8 – F2.68
• Horizontal FOV: 70.28° – 6.57°
• Vertical FOV: 42.06° – 3.76°
• Diagonal FOV: 78.36° – 7.5°
• Filter thread: 52 mm

Video Formats

• 4K (2160p) up to 30 fps
• 1080p up to 30 fps
• 720p up to 30 fps
• Vertical format (9:16) up to 60 fps

Image Processing

• Focus: Auto / Manual
• Exposure: Auto, shutter priority, iris priority, manual
• Backlight compensation: yes
• Noise reduction: 2D / 3D
• Signal-to-noise ratio: > 50 dB

PTZ Mechanics

• Pan range: ±175°
• Tilt range: -90° to +90°
• Pan speed: 0.1 – 80°/s
• Tilt speed: 0.1 – 60°/s
• Presets: up to 255

Video & Network

• Video outputs: HDMI, USB‑C (UVC), network
• Compression: H.264, H.265
• Network: 100M Ethernet, Wi‑Fi (802.11ac), PoE (IEEE 802.3af)
• Streaming protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP

Control

• Interfaces: Ethernet, Wi‑Fi, RS232, RS485, USB‑C
• Protocols: VISCA, VISCA‑IP, NDI

General

• Power supply: 12 V DC or PoE
• Power consumption: max. 13 W
• Operating temperature: -10 °C to +40 °C
• Weight: approx. 1.43 kg
