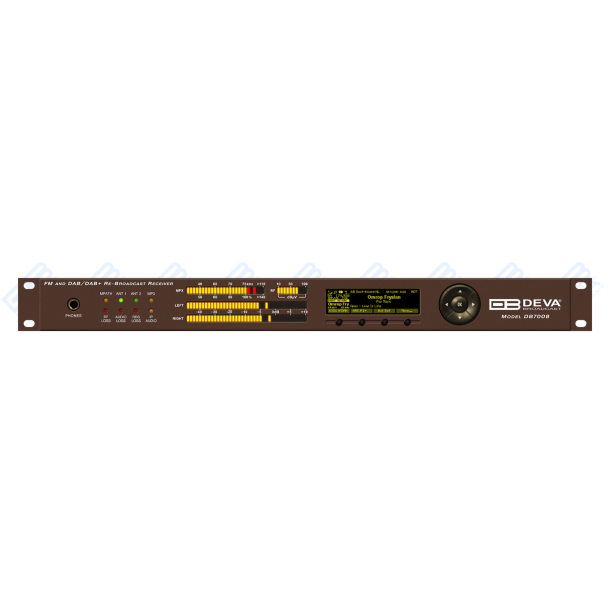

Deva DB7008 Advanced FM and DAB/DAB+

Re-Broadcast Receiver with IP Audio & MP3 Backup Players

High-Accuracy Reception, High-Confidence Rebroadcast

• FM Band 87.1 - 108 MHz with Basic Spectrum Analyzer
• Up to 100 dBµV Direct RF Antenna Input
• Selectable Wide-Range IF Filter Bandwidth
• Fully DSP-Based Signal Processing
• Built-in Loudness Analyzer (ITU BS.1770-4 and EBU R128 compliant)
• Bright LED Bar Graph Meters for RF, MPX and Audio Levels
• Selectable De-emphasis
• Built-in Stereo Decoder
• RDS/RBDS Decoder with BER Meter
• 24-Channel FM Data Logger with Historical Data
• Real-Time Audio Streaming for Remote Listening
• High-End Digital DAB/DAB+ Tuner
• ETSI EN 300 401 Compliant
• Program Associated Data (PAD) Support
• Full Component Information including Ensemble, Service, Subchannel, Metadata
• Automatic Display of Live PAD Information
• 24-Channel DAB/DAB+ Data Logger
• High-Stability RF Front End for Reliable Rebroadcasting
• Low-Noise, High-Quality Audio Output Paths for Re-Emission

• Configurable Backup Sources (FM ↔ DAB/DAB+)
• Automatic Source Switching with Adjustable Thresholds
• Protected Access to Device Settings
• Balanced Analog Audio Outputs (XLR) with Adjustable Level
• Professional AES/EBU Digital Output
• Headphone Output with Front-Panel Level Control
• SNTP for Automatic Clock Synchronization
• LAN Port for Full TCP/IP Remote Control and Monitoring
• Built-in Web and FTP Servers with no additional software required
• Easy-to-Use Web Interface with Apple and Android Device Support
• Adjustable MIN/MAX Alarms for RF, MPX, L/R Audio Levels, RDS, BER, PAD,
• Alarm Dispatch via E-mail, SNMP v2C and Rear-Panel GPO Outputs
• Detailed Error and Status Logging
• Wide-Angle OLED Display for Instant Local Readout
• Intuitive Front-Panel Navigation with Soft Keys
• Accurate Front-Panel RF and Audio Metering
• Firmware Updates for Continuous Feature Improvements
• Restore Factory Parameters Option
• Easy Installation and Setup

The DB7008 Rebroadcast Receiver is a next-generation solution engineered to deliver high-precision FM and DAB/DAB+ signal reception, monitoring and continuous rebroadcasting within a single professional platform. Built on a powerful DSP architecture and advanced RF front end, it ensures reliable operation even under demanding broadcast conditions.

A notable feature of the DEVA DB7008 is its ability to use DAB/DAB+ as the primary program source while preserving full FM metadata. When operating in this mode, the receiver can extract PAD (Program Associated Data) from the selected DAB service and automatically populate RDS dynamic fields, such as Radiotext. This provides seamless metadata continuity across broadcast technologies, allowing FM listeners to receive the same dynamic information carried by the DAB service.

With two independent tuners, one dedicated to FM and one to DAB/DAB+, the DB7008 enables simultaneous monitoring, redundancy and automatic switching to backup sources. Its measurement capabilities include loudness monitoring compliant with ITU BS.1770-4 and EBU R128, detailed RDS/RBDS and BER analysis, PAD metadata decoding and extensive logging for both FM and DAB/DAB+. Each tuner includes a 24-channel logger, with all historical data accessible via FTP.

Operation is straightforward thanks to the intuitive front-panel interface, sharp OLED display and bright LED level meters. Remote management is fully supported through a responsive web interface compatible with desktop and mobile devices. Integrated SNMP, e-mail and GPO alarms ensure immediate notification of signal issues, making the DB7008 a dependable component in any professional broadcast infrastructure.

Accessories: GSM Modem, Power Supply, External GSM Antenna
