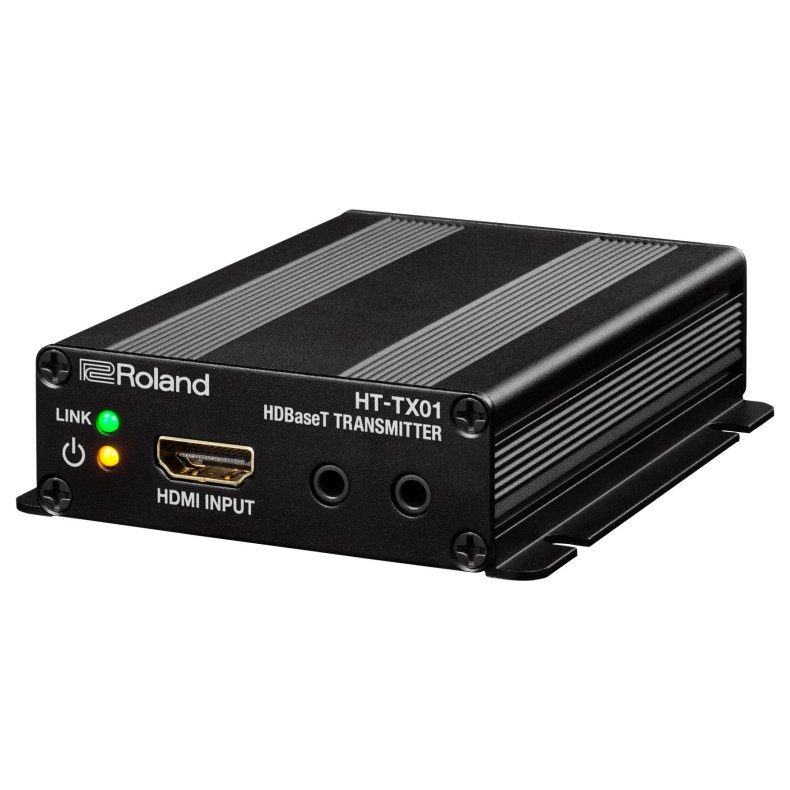

Roland HT-TX01 HDBaseT Transmitter

2.259 DKK ~~2.377 DKK~~

Roland

Model/Varenr.: RL-HT-TX01

Lagerstatus: Spørg venligst om leveringstid

Styk

Roland HT-TX01 HDBaseT Transmitter

HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.

Converts HDMI input to HDBaseT signals
Maximum 1080/60p and WUXGA support for HDMI
HDCP compliant
Capable of RS-232C transmission

Roland HDBaseT Transmitter

Roland HD BaseT solutions empower the sharing of ideas in huddle & meeting rooms and supports AV installations with simplified distribution of the presenter’s computer to a video switcher or a digital projector hundreds of feet away.

Long-distance HDMI distribution

Pair the Roland HT-TX01 Transmitter with the Roland HT-RX01 Receiver to convert and transmit uncompressed High Definition HDMI video, audio and RS-232 control up to 100 meters using industry standard Cat5e cable.

Technical specifications:

Input Formats
- 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
- *RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
- *The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
- *1920 x 1200/60Hz : Reduced blanking
Audio Formats
- The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors
- HT-TX01: HDMI x 1 : Type A 19 pins
- HT-RX01: RJ45 x 1
Output Connectors
- HT-TX01: RJ45 x 1
- HT-RX01: HDMI x 1 : Type A 19 pins
Other Connectors
- RS-232 x 1 : 9 pins D-sub type
- *when using additional RS-232 cable
Transmission distance
- The maximum is 100m (328 ft)
- *To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
- *The available distance depends on the quality of the LAN cable.
Operating temperature range
- 0 to 40 degree C
- 32 to 104 degrees F
Operating temperature humidity
- 10 to 85 % (no condensation)
Storage temperature range
- 20 to 60 degree C
- 4 to 140 degrees F
Storage temperature humidity
- 10 to 85 % (no condensation)
Current Draw
- 2 A
Power Supply
- AC Adaptor
Dimensions
- 81 (W) x 93 (D) x 24 (H) mm
- 3-3/16 (W) x 3-11/16 (D) x 1 (H) inches
Weight excl. AC adaptor
- 300 g
- 11 oz
Accessories
- AC adaptor
- AC plugs (3 types)
- RS-232 conversion cable (2 m (6 ft 6 inches))
- ferrite core x 3
- Owner's Manual

SIZE AND WEIGHT

Width
- 81 mm
- 3-1/4 inches
Depth
- 93 mm
- 3-11/16 inches
Height
- 24 mm
- 1 inches
Weight
- 300 g
- 0 lbs. 11 oz.
