AEV ACUO MB full digital DSP broadcast console with 8 double channel faders, all balanced in- + out

AEV ACUO MB full digital DSP broadcast console with 8 double channel faders, all balanced in- and outputs

Some fotos show including the OPTIONAL 4-fader extension. This is only the MAIN unit. The optional 4-fader has to be ordered additionally, please look below at related items.

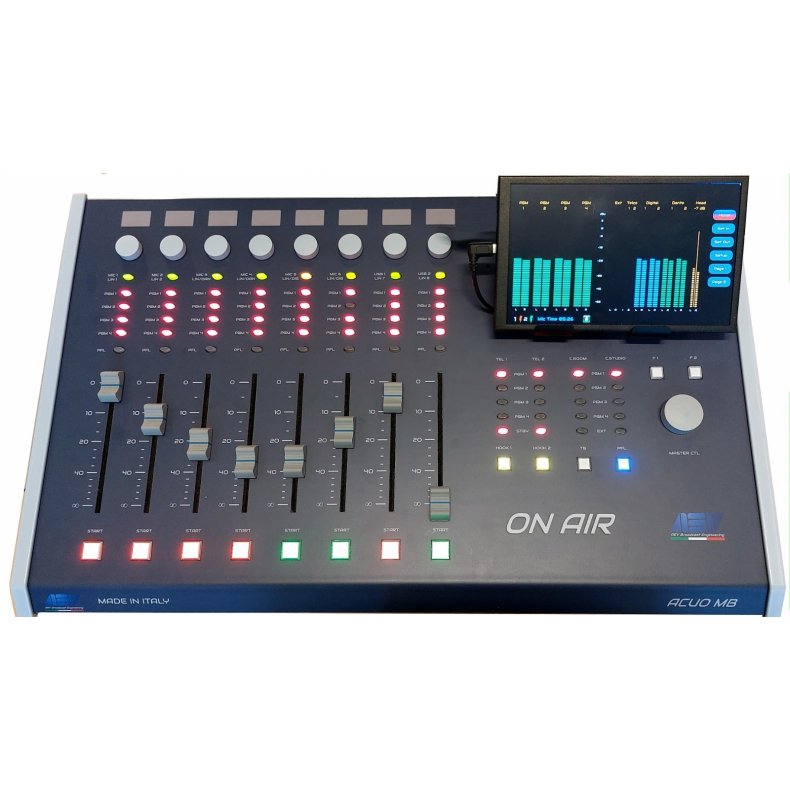

ACUO MB is the lastest OnAir broadcast digital expandible audio console designed in AEV Broadcast powered by DSP
It got all the modern features you need, the Main console supply 22 inputs, in eight faders, six microphone inputs, eight balanced analog line input, two AES/EBU digital input, two Dante inputs (optional) two telco/telephone interface. Acuo MB offers you all the functionality expected from this ultimate console like mixing and monitoring facilities, logic controls, TCP/IP connection.
To the Main Unit can be add until two Expansion units via ethernet cable, with four channels each, so we can supply the configuration with 8, 12 and 16 faders.
ACUO MB has a modern low profile design and intuitive control surface that will be immediately familiar to all users.

INPUT
– 6 Mic transformer balanced inputs
– 2 Digital AES/EBU stereo inputs
– 2 Digital USB built-in audio card with I/O stereo interface
– 2 Digital Dante inputs (optional)
– 8 Balanced analog stereo inputs

OUTPUT
– PGM1 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM2 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM3 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– PGM4 Analog balanced (24 Bit D/A) and Digital AES/EBU with SRC
– USB 1 audio channel
– USB 2 audio channel
– Digital 1 AES/EBU
– Digital 2 AES/EBU
– Telco 1 & 2 CleanFeed Analog (24 Bit D/A) and Digital AES/EBU (48 KHz No-Sync)

CHANNEL FUNCTIONS
– Level adjustment
– Phantom Power (for Mic Input only)
– Voice Processor (Optional)
– Busses assignement (PGM1-PGM2-PGM3-PGM4-DIG1-DIG2-Dante1-Dante2-Telco 1 and 2)
– Mode Selector (Le@/Right/Stereo/Mono)
– Balance
– Phase Reverse
– Control Room and Studio Mute
– Timer Restart
– Tally 1 and 2 Logic
– Intercom & talkback mode
– Start/Stop Control Logic

MONITORING
– Level Control of the Headphones, Control room and Studio
– CUE Speaker Built-in CUE Speaker (with monitor selector)
– Level Meters on 8” Color Display

TECHNICAL SPECIFICATIONS

Microphone Inputs
Input configuration Electronically balanced
Sensitivity Level Range Adjustable from –70 ÷-40 dBu
Input Level Range +24 dBu (Digital adj. step 0,5 dB)
Maximum Input Leve l0 dBu
Phantom Supply 48 Vdc selectable
100 mm Fader VCA Digital controlled
Connector XLR Female

Line Inputs & External Input
Input configuration Electronically balanced
Total Frequency response +0.5 dB (20 Hz – 20 kHz)
Harmonic Distorsion + Noise 0,02%
Input Impedance 10 K Ω
Analog Input Level +4 dBu
Headroom + 18 dBu
100 mm Fader control VCA Digital controlled
Connector RJ-45

Digital inputs
Input configuration AES/EBU, IEC958,S/PDIF & EIAJ CP340/1201
Sample Rate Automatic 32, 44.1, 48, KHz converter
100 mm Fader control VCA Digital controlled
Connector RJ-45

Dante™ AoIP I/O (optional)
Dante Audio over IP, AES67 RTP, SMPTE ST2110-30
Sample Rate 44.1/48/96 KHz

Telephone Hybrid / Telco
Input configuration Opto-coupled
Input impedance 600 Ω Bal
Line Compensation Automatically (max 5 Km)
Tx Level +/-12 dBu (Digital adj. step 0,5 dB)
Rx Level Range -12/+24 24 dBu (Digital adj. step 0,5 dB)
Frequency response: 300 Hz ÷ 3400 Hz (-1.5 dB)
Distortion < 1.0 %
Noise -60 dB.

Analog Outputs
Output configuration Electronically balanced
Maximum Output level +24 dBu
Crosstalk -90 dBu
Output Impedance 100 Ω balanced / 50 Ω unbalanced
PGM 1 Output Level Range -12 ÷ +24 dBu
Connector XLR male
PGM 2/3/4 Output Level Range -12 ÷ +24 dBu
Connector RJ-45
C Room Mut.Output Lev. – 12÷ +24 dBu
Connector RJ-45

Digital Outputs
Output configuration AES/EBU, IEC958,S/PDIF & EIAJ CP340/1201
The two digital outputs can be associated with all outputs
Sample Rate 32, 44.1, 48 KHz converter
Connector RJ-45

Headphones
configuration Type Stereo unbalanced (C.Room no Muted)
Output Impedance 50 Ω
Connector Jack TRS female 6,3 mm

Logic I/O
Configuration Optic solid state relay
Two input-4 outputs
Max Voltage 50 Vdc/ac
Max Current 100 mA
Connector mini-jack 3,5 mm female
USB Port 2 x USB 2.0 interface
PWS Switching power supply 87-240 VAC, 50/60 Hz 60 W, output voltage range 10-28 Volt
Redudant PWS available

Dimensions Mainframe
600 x 360 x 44 mm (L x D x H)
