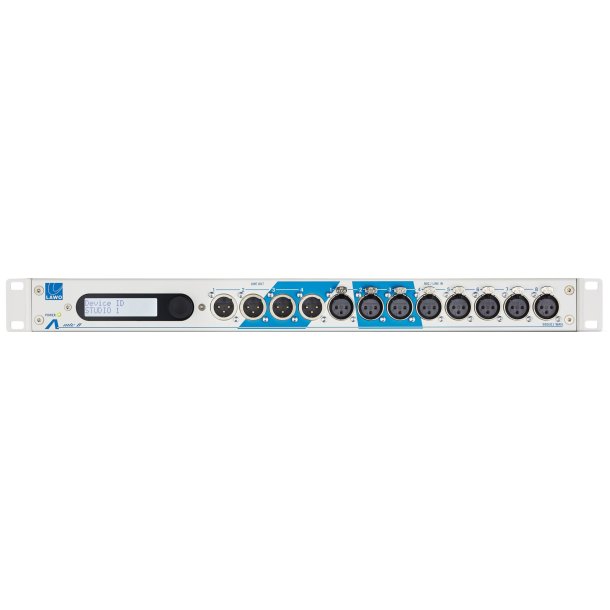

LAWO A__mic8
INTERFACES
- 8x switchable MIC/LINE inputs on XLR featuring remotely controlled 79dB gain range, 20dB PAD and +48V phantom power. Support for balanced and unbalanced sources through floating analog stage design. Dynamic Range of 119dB(A) with maximum input level of +24dBu
- 4x Line outputs on XLR. Floating balanced design supports balanced and unbalanced destinations. Maximum output level: +24dBu
- 2x RJ45 100/1000Base-T Ethernet ports for streaming and control
- 1x Wordclock IN on BNC (75Ω)
- 1x Wordclock OUT on BNC (75Ω)
- 8/8 GPIO opto/CMOS on DB-37
SIGNAL PROCESSING
- Switchable Low-Cut Filter for 40/80Hz
- PPM metering for all analog inputs and outputs
- 64/64 channel routing matrix
POWER
- Power-over-Ethernet (PoE) Class 3: 36~57V
- DC Input: 10~14V/1.0A (optional local PSU redundancy)
- Power Consumption 15W
ENVIRONMENTAL
- OPERATING TEMPERATURE: 0°C~+40°C (+32°F~+104°F)
- VENTILATION: Fanless passive cooling direction sideways
MECHANICS
- DIMENSIONS (H x W x D): 44mm (1 RU) x 481mm (19”) x 210mm (8.27”)
- WEIGHT: 2.1kg (4.6lbs)
