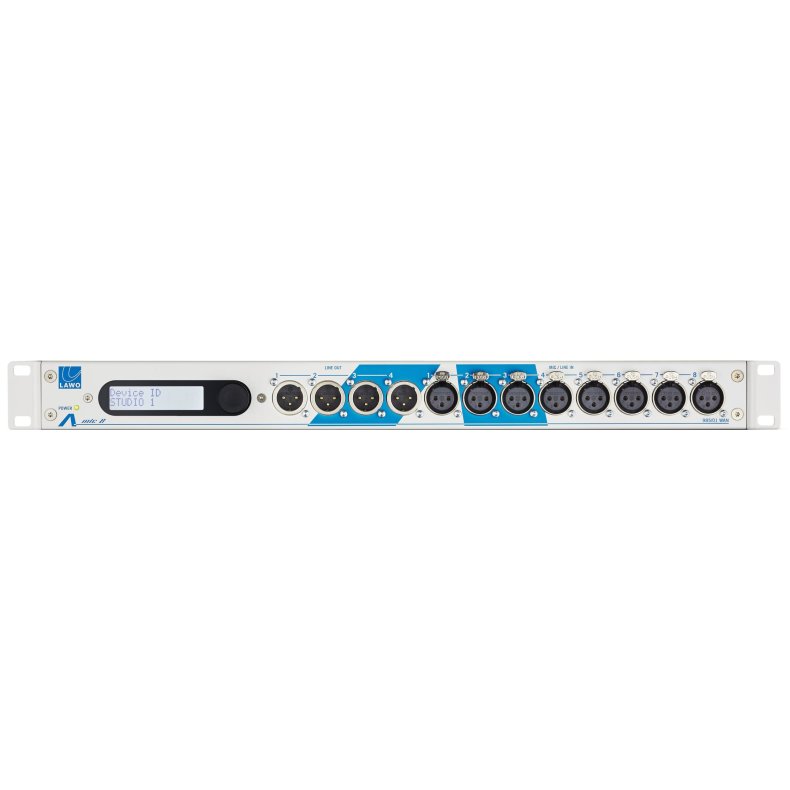

Lawo A__mic8, ST2022-7, Class C audio card 8 MIC/LINE IN XLR, 4 LINE OUT XLR, 2 RJ45, 8 GPIO, WCKL

Lawo A__mic8, ST2022-7, Class C audio card 8 MIC/LINE IN XLR, 4 LINE OUT XLR, 2 RJ45, 8 GPIO, WCKL

28.956 DKK

Model/Varenr.: LA-985/01_WAN
Lagerstatus: Afsendes indenfor 10-21 arbejdsdage
Styk
LAWO A__mic8
INTERFACES
  • 8x switchable MIC/LINE inputs on XLR featuring remotely controlled 79dB gain range, 20dB PAD and +48V phantom power. Support for balanced and unbalanced sources through floating analog stage design. Dynamic Range of 119dB(A) with maximum input level of +24dBu
  • 4x Line outputs on XLR. Floating balanced design supports balanced and unbalanced destinations. Maximum output level: +24dBu
  • 2x RJ45 100/1000Base-T Ethernet ports for streaming and control
  • 1x Wordclock IN on BNC (75Ω)
  • 1x Wordclock OUT on BNC (75Ω)
  • 8/8 GPIO opto/CMOS on DB-37
SIGNAL PROCESSING
  • Switchable Low-Cut Filter for 40/80Hz
  • PPM metering for all analog inputs and outputs
  • 64/64 channel routing matrix
POWER
  • Power-over-Ethernet (PoE) Class 3: 36~57V
  • DC Input: 10~14V/1.0A (optional local PSU redundancy)
  • Power Consumption 15W
ENVIRONMENTAL
  • OPERATING TEMPERATURE: 0°C~+40°C (+32°F~+104°F)
  • VENTILATION: Fanless passive cooling direction sideways
MECHANICS
  • DIMENSIONS (H x W x D): 44mm (1 RU) x 481mm (19”) x 210mm (8.27”)
  • WEIGHT: 2.1kg (4.6lbs)
Titel Type Størrelse Download
Lawo-A__mic8andA__digital8UserGuideV10.0.0_4.pdf PDF 10.55MB Download
